Supersize Your CNC: The Complete 3018 to 5050 Expansion Blueprint

Let’s be real: we all love the 3018 CNC. It is the ultimate gateway drug into the world of subtractive manufacturing. It’s cheap, it fits on a desk, and it teaches you the basics. But if you are anything like me, the honeymoon phase ended the moment you tried to carve something bigger than a coaster or a small PCB.

I was constantly playing "Tetris" with my clamps and running into the hard limits of that tiny 30cm x 18cm work area.

I looked at buying a larger machine, but the price jump was hard to swallow. Then I looked at my 3018 and realized: the brain (electronics), the muscle (motors), and the complex Z-axis were perfectly fine. It was just the skeleton that was too small.

So, I decided to stop shopping and start building. I cannibalized my little desktop mill and turned it into a 5050 CNC Machine. Here is how I did it.

The Strategy: Recycle and Expand

My goal was to keep costs low by reusing as much of the original machine as possible. I didn't want to build a CNC from scratch; I wanted to give my existing one a massive growth spurt.

What I Kept

• The Z-Axis Assembly: This is the hardest part to build from scratch, so keeping the original spindle mount and carriage saved me hours of frustration.
• Stepper Motors: The NEMA 17s have plenty of torque for a 50x50 frame if tuned right.
• Electronics: The standard control board handles the larger frame without breaking a sweat.

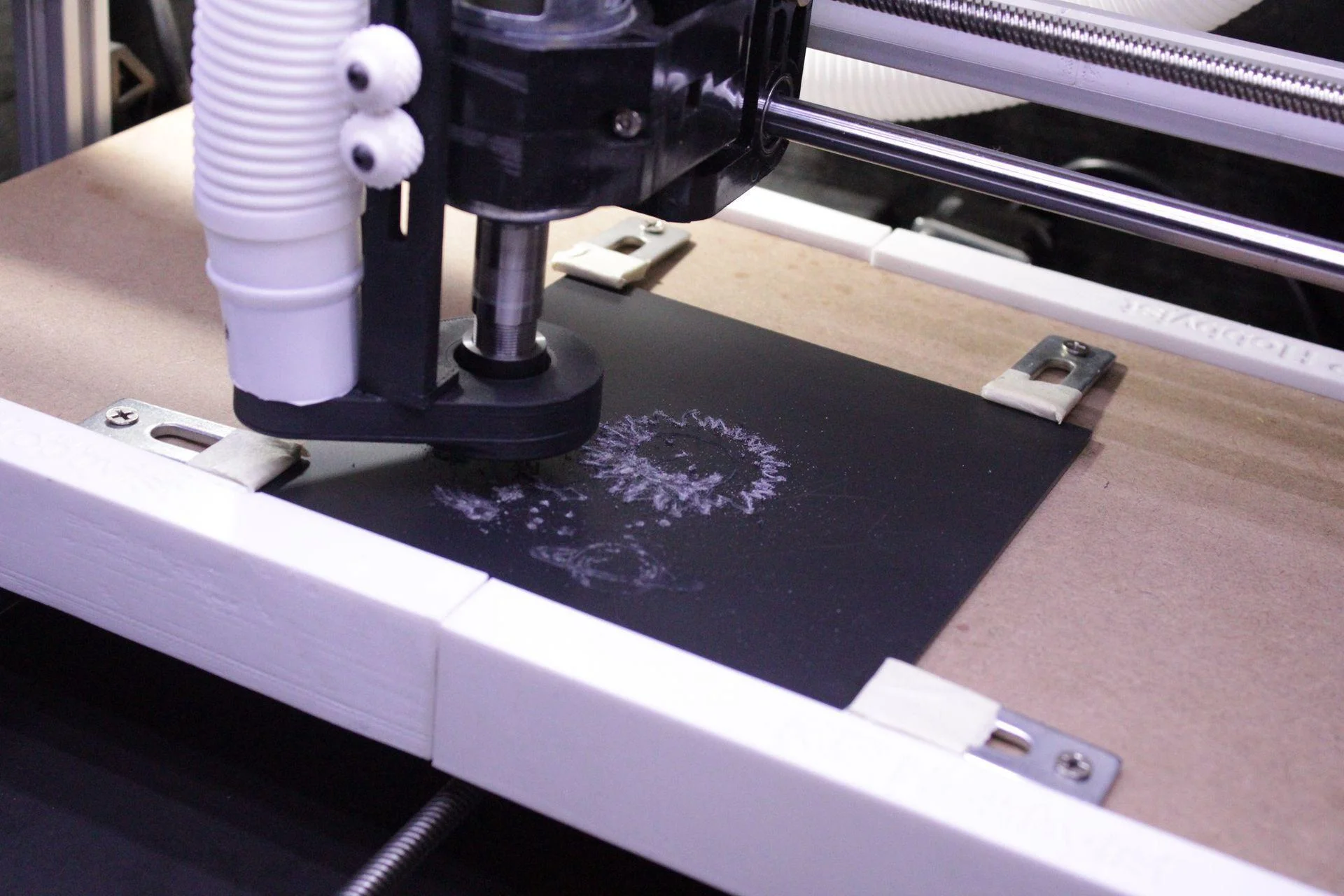

What I Changed

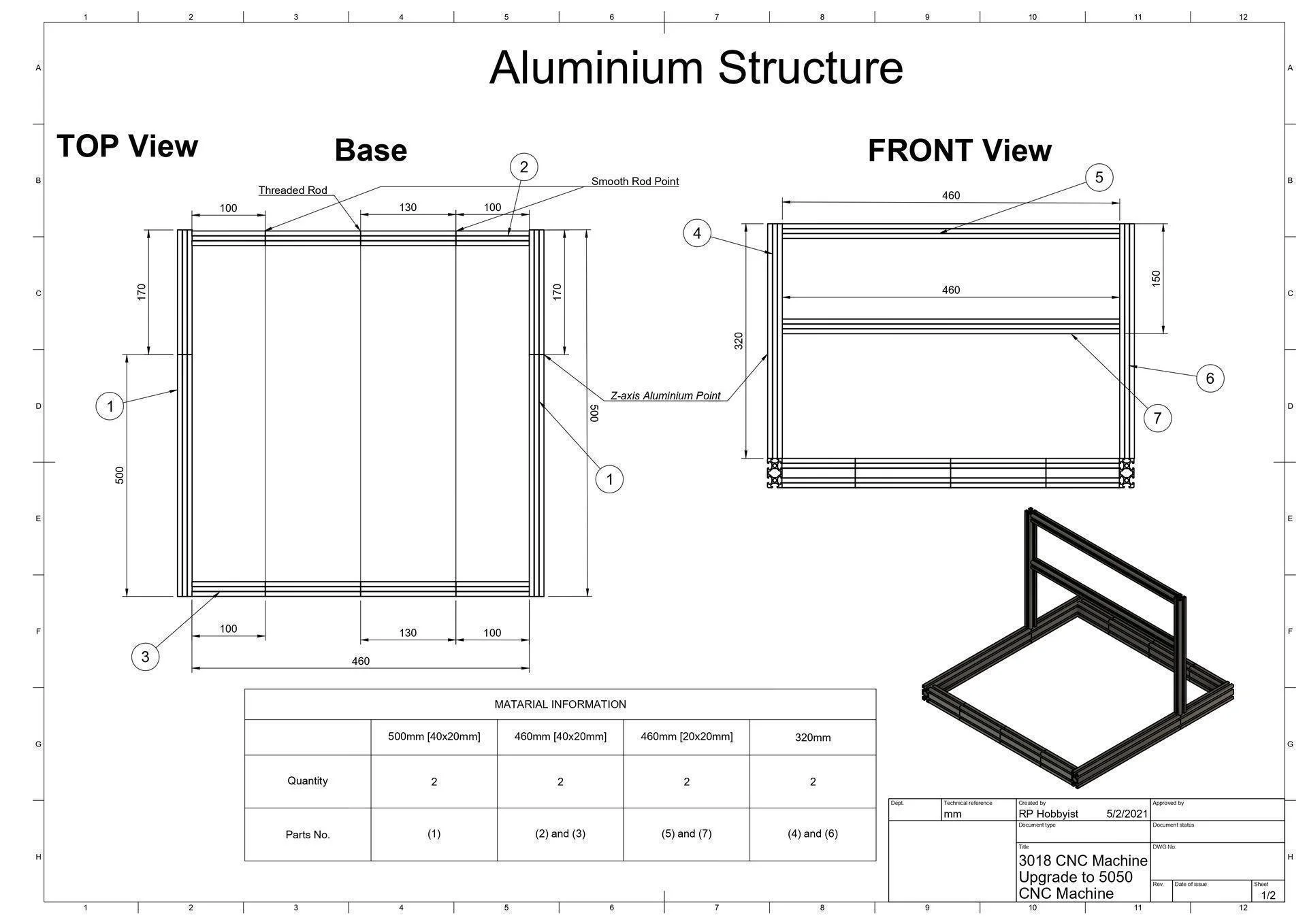

• The Frame: I swapped the small 2020 extrusion for a rigid, custom aluminum profile frame to support the wider stance.
• The Drive System: Longer linear rods and lead screws were mandatory to span the new distances.

The Critical Upgrade: Speed vs. Torque

One of the biggest technical decisions I made during this build was upgrading the lead screws. The stock 3018 usually comes with T8 2-start lead screws. While they are fine for short distances, they are painfully slow on a larger bed.

For the X and Y axes on my 5050 build, I switched to T8 4-start lead screws.

This simple swap allows for much faster travel speeds—crucial when your machine has nearly 4x the surface area to cover. It did require a quick firmware tweak (changing the GRBL \$100 and \$101 settings to 400.000), but the performance boost was instantly noticeable.

Quality of Life Improvements

Since I was rebuilding the machine anyway, I decided to fix the other things that annoyed me about the stock 3018. I didn't just make it bigger; I made it smarter:

1. Wireless Control: I ditched the USB tether and added an offline controller with Bluetooth capabilities. Now I can jog the machine from my phone.
2. Remote Monitoring: I mounted an ESP32-CAM so I can keep an eye on long cutting jobs without being glued to the workshop chair.
3. Dust Protection: I designed and 3D printed custom V-slot covers. Nothing kills a CNC faster than dust in the rails, and these covers keep the motion system silky smooth.
4. Safety First: I wired in a large, dedicated Emergency Stop button. On a machine this size, you don't want to be fumbling for a software pause button if things go wrong.

The Verdict

The difference is night and day. I now have a rigid, capable machine with a 500mm x 500mm footprint. I can carve large signs, batch-process multiple small parts at once, and work with materials I wouldn't have dared to touch on the shaky original frame.

If you have a 3018 gathering dust because you've outgrown it, don't throw it away. Upgrade it.

Want to build this yourself?

I’ve documented every step, including the Bill of Materials (BOM), the wiring schematics, and the STL files for the printed parts.

Check out my full guide on Instructables
